Wiring Diagram

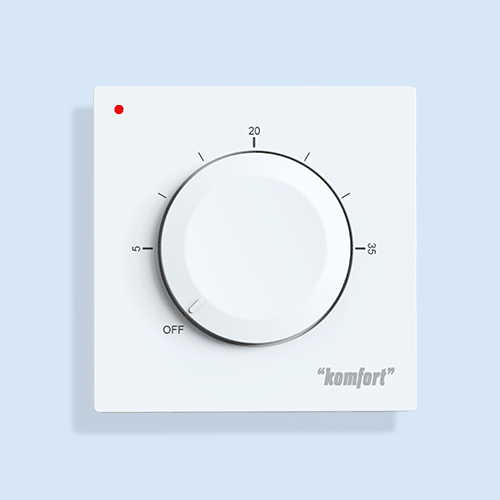

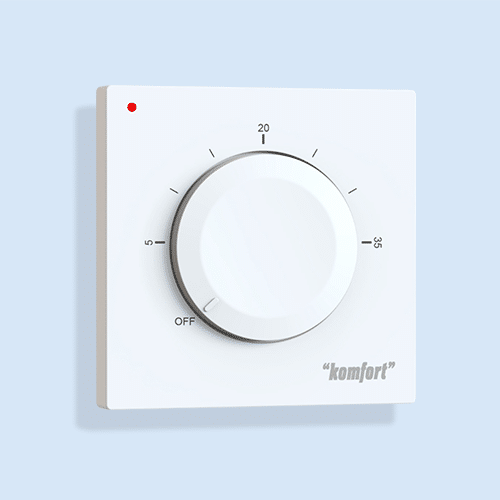

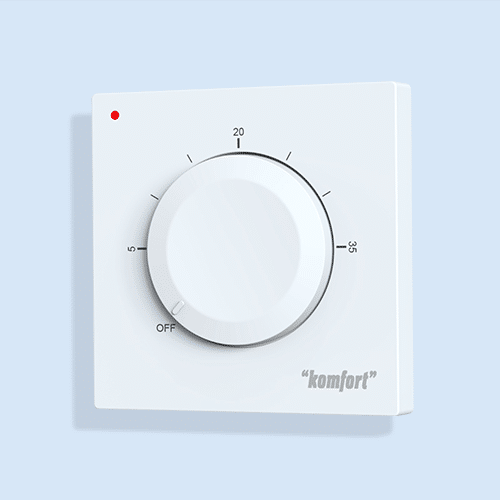

Key Features
- Temperature Range: Adjustable from 5°C to 35°C
- Dual Sensing: Choose between floor or air temperature control
- Effortless Operation: Simple dial control for intuitive use
Technical Data
- Power Supply: 230V, 50/60Hz
- Max. continuous load (output): < 50 mA /10 W
- Max. inrush current (actuator): 3 A ≤ 100 ms
- Power consumption: <= 0,5 W
- Temperature setting range: 5 °C to 30 °C
- Ambient temperature, storage: 0°C to 50 °C
- Ambient temperature, used in application: <= 0,5 W
- Sensor type: 10k, NTC
- Protection Class: IP20
- Housing: ABS PC
- Suitable to be used for Electric and Wet UFH Systems, Underfloor Cooling, Heating and Cooling
- 3m 10K floor sensor included
- Supplier Code: ST-KO-D-HC
- 2 Year Warranty.
