TECHNICAL DATA:
- Total Dimensions: L1200 x W600 x H20mm
- Compression Strength: XPS 400kPa
- Pipe Centres: 150mm
- Suitable Pipe Size: 16mm
- Thermal conductivity: 0.034W/mK
- Water Absorption: 0.6%
- Temperature Range: -50°C to 70°C
- Fire Performance: Class 0 / Euro Classification E

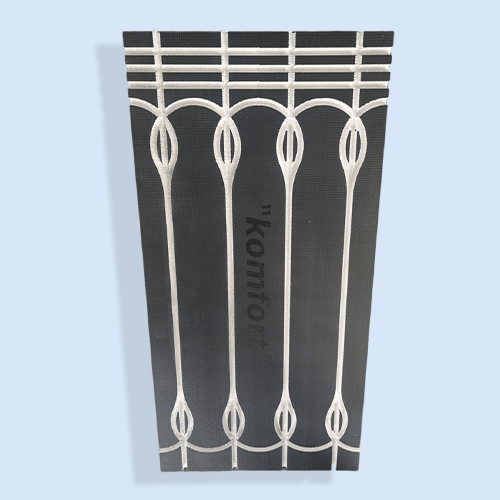

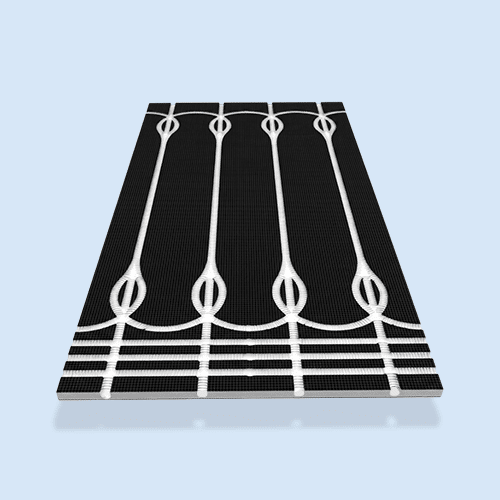

- USP: Omega grooves for easy installation
- Suitable Floor Coverings: Tiles can be laid directly, or a 10mm levelling compound can be used for other floor coverings.
How many boards do you need? Calculation Example: 20m2 divide by 0.72 = 28 Panels.
Key Features:
- Material: High-density extruded polystyrene with reinforced cement coating.
- Strength: Excellent impact and compressive strength.
- Cutting: Can be easily cut using conventional tools.
- Bonding: Exhibits good bonding properties for cement-based tile adhesives (Note: Solvent-based products must not be used).
- Moisture Resistance: Ideal for installation in wet areas like bathrooms, where moisture exposure is common.
Floor Coverings / Finishes:
- Tiles and Stone: Tiles can normally be fixed directly to the cement-coated surface using a flexible tile adhesive after priming where required.
- Laminate and Engineered Wood : A minimum of 7 mm thick flexible, cement-based levelling screed is required.
- LVT, Vinyl and Carpet: These floor finishes should not be installed directly onto the boards. Prime the surface and apply approximately 10mm of fibre-reinforced self-levelling compound before laying the final floor covering. For carpet installations, the combined carpet and underlay rating should not exceed 2.0 tog.
- Supporting Floor Surface: The KOC20 overlay board cannot be laid directly onto joists; it must be installed on a supportive floor surface, such as plywood or floor-grade chipboard.
Usage Recommendations: Ideal for applications in areas with high moisture, the KOC20 Overlay Panel is a versatile solution for enhancing flooring systems while providing essential moisture protection and structural support.
