Underfloor Heating Overlay Boards - Cement Coated XPS Panel 1200 x 600 x 16mm

Underfloor Heating Overlay Boards – Cement Coated XPS Panel 1200 x 600 x 16mm

SKU: PN20-KOC-CR.NY Categories: ,

£11.89 INCL VAT£9.91 EX VAT

Out of Stock

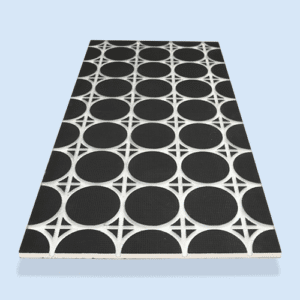

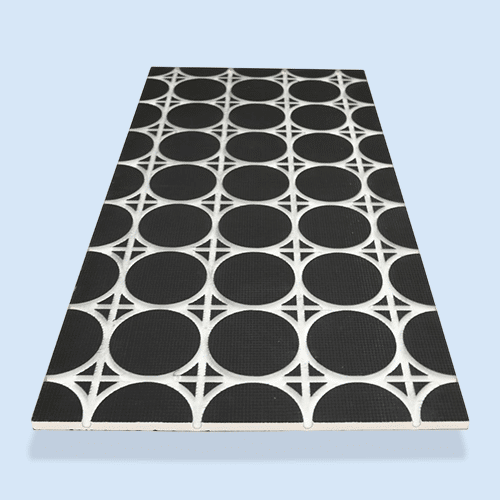

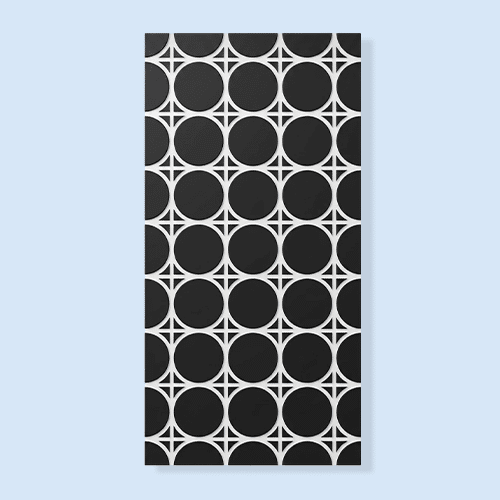

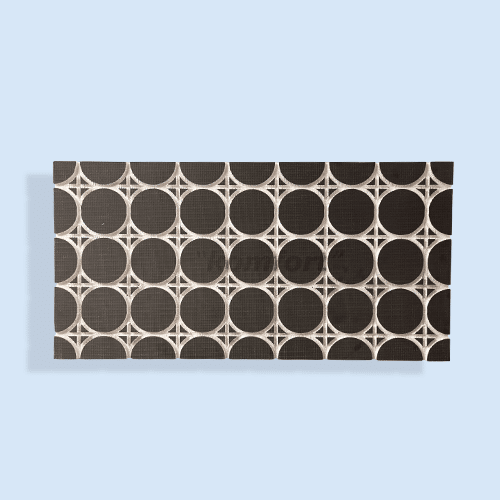

Introducing the Komfort KOC-CR16 Cement XPS Overlay Panel which are designed to provide superior insulation and support for underfloor heating systems. Available in a 16mm thickness, these boards are made from 400 KPA extruded polystyrene (XPS), offering excellent thermal insulation and compressive strength. Both sides of the board are coated with a durable cement layer, providing a stable surface suitable for direct application of marble, stone and tiles or levelling compounds for other floor coverings.

Introducing the Komfort KOC-CR16 Cement XPS Overlay Panel which are designed to provide superior insulation and support for underfloor heating systems. Available in a 16mm thickness, these boards are made from 400 KPA extruded polystyrene (XPS), offering excellent thermal insulation and compressive strength. Both sides of the board are coated with a durable cement layer, providing a stable surface suitable for direct application of marble, stone and tiles or levelling compounds for other floor coverings.

TECHNICAL DATA:

  • Total Dimensions:  L1200 x W600 x H16mm
  • Compression Strength: XPS 400kPa
  • Pipe Centres:  150mm
  • Suitable Pipe Size:  12mm
  • Water Absorption: 0.6%
  • Temperature Range: -50°C to 70°C
  • Fire Performance: Class 0 / Euro Classification E
  • USP: Omega grooves for easy installation.
  • Suitable Floor Coverings: Tiles can be laid directly, or a 10mm levelling compound can be used for other floor coverings.

How many boards do you need? Calculation Example: 20m2 divide by 0.72 = 28 Panels.

Key Features:

  • Material: High-density extruded polystyrene with reinforced cement coating.
  • Strength: Excellent impact and compressive strength.
  • Cutting: Can be easily cut using conventional tools.
  • Bonding: Exhibits good bonding properties for cement-based tile adhesives (Note: Solvent-based products must not be used).
  • Moisture Resistance: Ideal for installation in wet areas like bathrooms, where moisture exposure is common.

Installation Guidelines:

  • For Tiled Finishes: You can tile directly onto the KOC-CR16 overlay board.
  • For Wood Panelling and Laminate: A minimum of 7 mm thick flexible, cement-based levelling screed is required.
  • Supporting Floor Surface: The KOC-CR16 overlay board cannot be laid directly onto joists; it must be installed on a supportive floor surface, such as plywood or floor-grade chipboard.

Usage Recommendations: Ideal for applications in areas with high moisture, the KOC-CR16 Overlay Panel is a versatile solution for enhancing flooring systems while providing essential moisture protection and structural support.
