Technical Data:
- Actuator thread size: M30mm
- Manifold thread size: 21mm (1/2″)
- Pin valve dimensions: L54 x W30mm
- Pin valve (from 1/2″ BSP thread to bottom): L23.5mm
- Tail piece (from 1/2″ BSP thread to bottom): L14.3mm
- Tail piece connection: 3/4″ to 1/2″ BSP
- Pin valve and tail piece overall height: 40.8mm
- Part no. V-R-R12

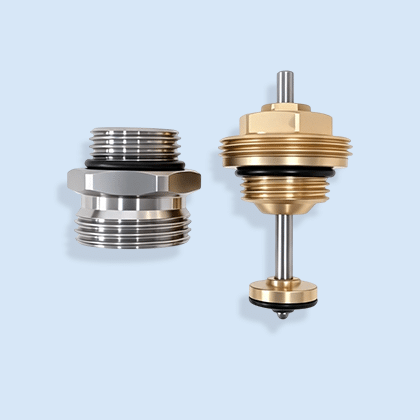

Introducing our suitable premium replacement solution for underfloor heating manifolds featuring a bar/barrel height of 40mm. This product is designed to seamlessly integrate with your existing setup, provided it accommodates a 1/2″ threaded pin valve and tail piece. For this replacement to work correctly, it’s essential to replace both the pin valve and tail piece during installation. Ensure a smooth and efficient heating experience with this reliable replacement option.
