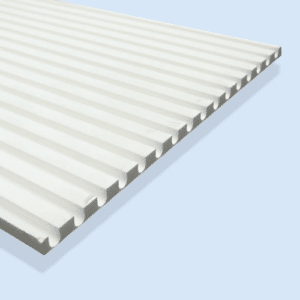

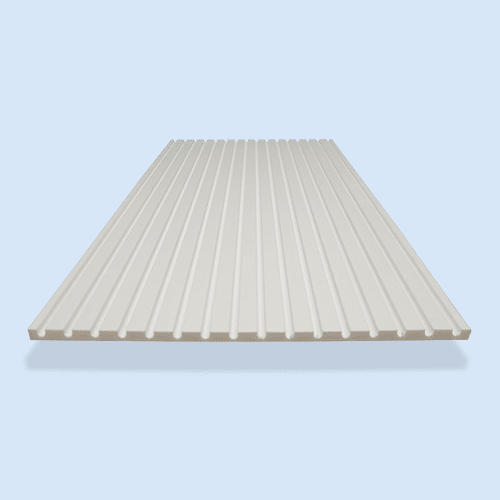

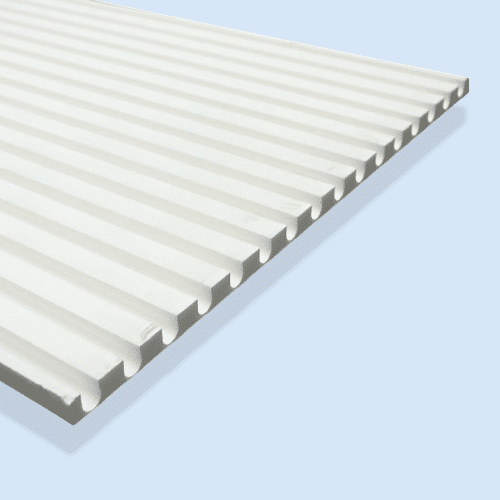

Introducing the Komfort GHT 20mm XPS Highway Transition Overlay Panel — the perfect match for XPS overlay systems, providing excellent insulation and supporting the flow and return pipes back to the manifold.
TECHNICAL DATA:
- Total Dimensions: L1200 x W600 x H20mm
- Compression Strength: XPS 400kPa
- Pipe Centres: 37.5mm
- Suitable Pipe Size: 16mm
- Thermal conductivity: 0.034W/mK
- USP: Omega grooves for easy installation
- Suitable Floor Coverings: If primed with a suitable primer, tiles can be laid directly, or a 10mm levelling compound can be used for other floor coverings.
How many boards do you need? Calculation Example: 20m2 divide by 0.72 = 28 Panels.
Key Features:
-
- Material: High-density extruded polystyrene with reinforced cement coating.
- Strength: Excellent impact and compressive strength.
- Cutting: Can be easily cut using conventional tools.
