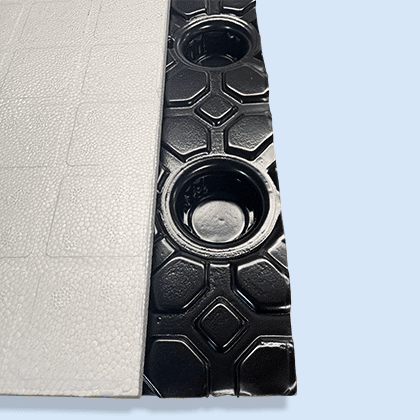

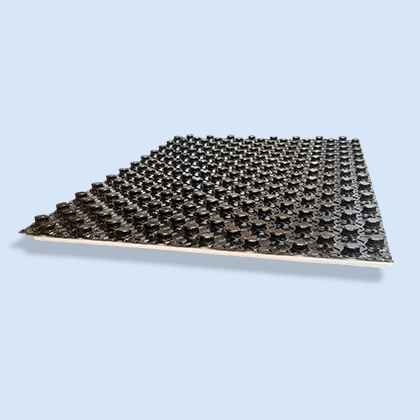

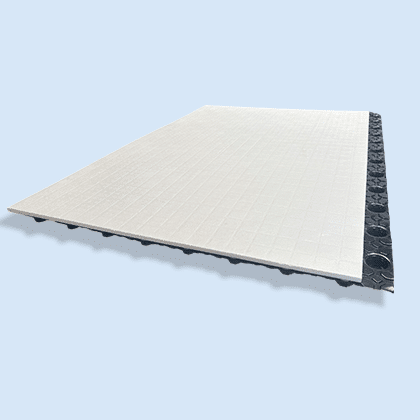

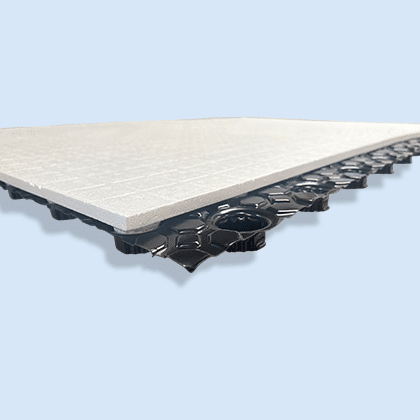

Komfort castellated floor panels also acts as a pipe-fixing template, ensuring precise pipe spacing for even heat distribution throughout the room. Lightweight and easy to cut to size, our unique floor panels can be adapted to fit almost any room shape.
Designed to hold pipes securely in place both before and during the pouring of floor screed, these innovative trays ensure your underfloor heating system is installed with accuracy and reliability, delivering consistent, efficient warmth throughout your space.
Our lightweight, versatile floor panels are easy to cut to size, allowing a perfect fit for any room shape. Supplied in sleek black, the interlocking design creates a seamless, continuous grid that simplifies installation. The panels accommodate pipe centres at 50, 100, 150, and 200mm, offering flexibility to suit your specific requirements.
Features and Benefits
- Easy to install
- Minimum amount of waste
- Eliminates pipe contact with insulation
- Dimensions: 1220 x 820 x 20mm high
- Pipe Centres can be at 50 mm, 100 mm & 150 mm and so on
- Each Panel will cover approx. 1m2
- Ideal for use with heat pumps
- Pipe Diameter 15-16mm
- Insulation type: EPS
- Insulation thickness: 10mm
