Underfloor Heating 22mm x 2 Port Zone Valve – Reliance ZONE250305

SKU: MV22-230-RE.RE Categories: ,

£47.51 INCL VAT£39.59 EX VAT

Availability: 15 in stock

Availability
Next day

Benefits

  • Easy to use, clip-on detachable head
  • Metal manual operating lever for strength and stability
  • The motorised head can be retrofitted to other manufacturers’ valve bodies
  • Water temperature range: 5°C to 88°C
  • Auxiliary switch rating: 3A 250VAC

Technical Specifications

  • Power supply: 220-240V, 50/60Hz, 5W
  • System fuse rating: 3A maximum
  • Auxiliary switch rating: 3A 250V AC
  • Water temperature: 5°C to 88°C
  • Cable length: 1m
  • Max. pressure: 6 bar

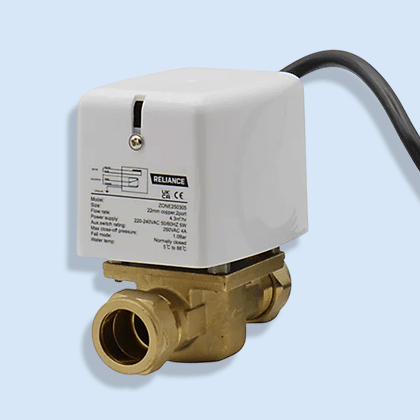

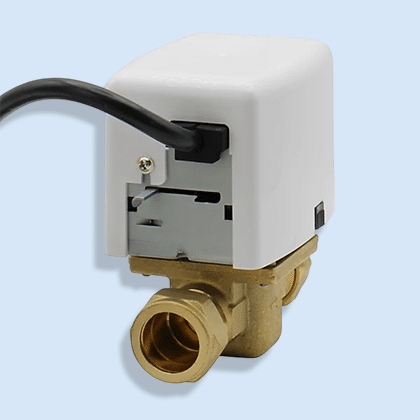

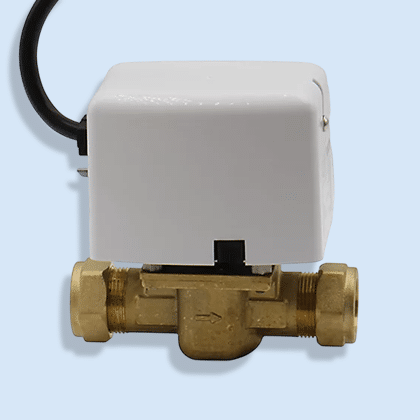

A 240V two port 22mm zone valve for use in heating systems to isolate zones or equipment; powered open with spring return. The valve is supplied complete with a pre-made moulded cable to plug straight into motorised head, allowing easy connection and disconnection for maintenance. The RWC two port zone valve features a unique detachable motorised head with a robust metal manual actuating lever, and is interchangeable with other leading manufacturers’ valve bodies, mounted on a high quality brass body to ensure a long operating life and total installation flexibility.
