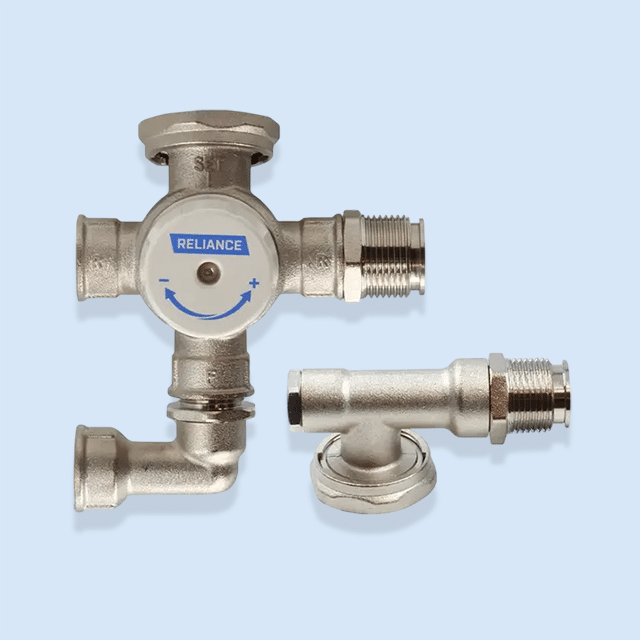

Reliance HEAT970366 Thermoguard Underfloor Heating Blending Valve

Reliance Water Controls Thermoguard HEAT970366 UFH Blending / Mixer Valve with female 3/4″  flow and return connections.
This valve supersedes the Reliance Thermomix which is no longer manufactured.

Specification:

• Hot temperature supply range: 60°C – 85°C
• Adjustable temperature range: 25°C – 60°C
• Maximum supply pressure: 6 bar
• Factory set temperature range: 45°C /- 2°C
• Temperature stability: /- 2°C
• Connections: Mixing valve inlets ¾” FBSP
• Manifold connections 1″ MBSP

Key Features:

• This thermostatic unit give excellent temperature stability particularly when return temperatures and mixed water is close to equal.
• This unit is designed with the flexibility for both a left and right set up onto the manifolds.
• The mixing valve will function down to 25°C to ensure that initial warm-up and commissioning can be correctly carried out.
• The side profile of the valve is reduces to allow eats fitting of the pack inside a cabinet/cupboard.
• Features a Temperature range of 25°C up to 60°C to cater for all types of floor constructions
